CHY08-10
CHY08-10
CNTD Electric Technology Co., Ltd. is one of the toppest CHY08-10 in China.During these years of exporting , CNTD Electric Technology Co., Ltd. now has rich experience in the worldwide markets
  • Features
  • Specififications

Inside surge protection, reverse polarity protection

Long use-life cycle and high reliability, easy install, enconomic price

Red LED status indication, easy to confifirm work situation

Protection structure IP67(IEC standard)

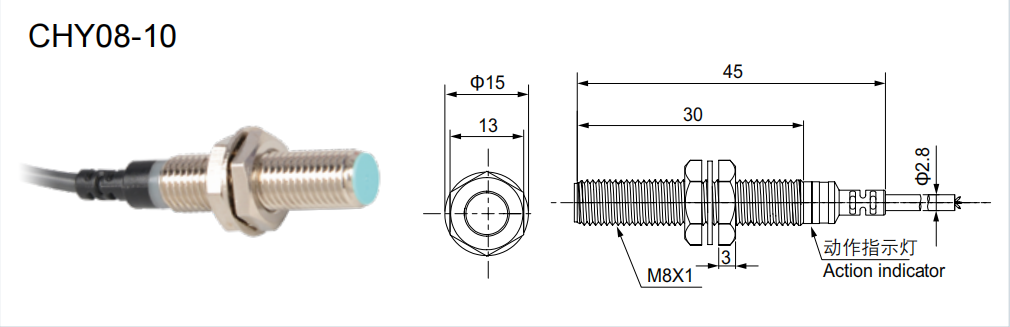

Appearance and Dimension

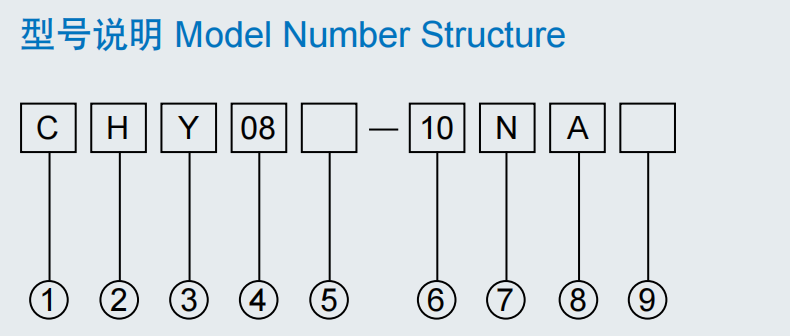

Model Number Structure

Item

Code

Description

1 Company code

C

Company code

2 Product name

H

Hall sensor

3 Shape of shell

Y

Cylinder-shaped

4 Dimension code

08

08=M08

5 Product type

Without

High-end type

6  Detection distance

10

10=10mm


7 Output mode

P

PNP 3wires

N

NPN 3wires


8 Output state

A

NO

B

NC

C

NO+NC


9  Connection

Without

Without: Lead wire

T

Plug-in

R

Wiring leads Plug-in

Model

CHY08-10NA CHY08-10PA CHY08-10NB CHY08-10PB

CHY12-10NA CHY12-10PA CHY12-10NB CHY12-10PB CHY12-10NC    CHY12-10PC

CHY18-10NA CHY18-10PA CHY18-10NB CHY18-10PB CHY18-10NC    CHY18-10PC

Sensing distance

10mm

10mm

10mm

Hysteresis

3-20%

Consumption current

10mA 以下

Power supply
(Operating voltage)


6-36VDC

Response frequency

1000Hz

Residual voltage

1V 以下 Max. 1V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ (  No icing)

Storage temperature

-15~+55℃ (No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit, Overcurrent protection circuit

Material

Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT, Standard
cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)


Cable

φ2.8,3P, 2m

φ3.8, 3P,4P 2m

φ4.8, 3P,4P 2m

(AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm, Number of cores: 25, Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm, Number of cores: 30, Insulator diameter: φ1.25

Protection

IP67
