CJY12E-02
CNTD Electric Technology Co., Ltd. is one of the toppest CJY12E-02 in China.During these years of exporting , CNTD Electric Technology Co., Ltd. now has rich experience in the worldwide markets
  • Features
  • Specififications

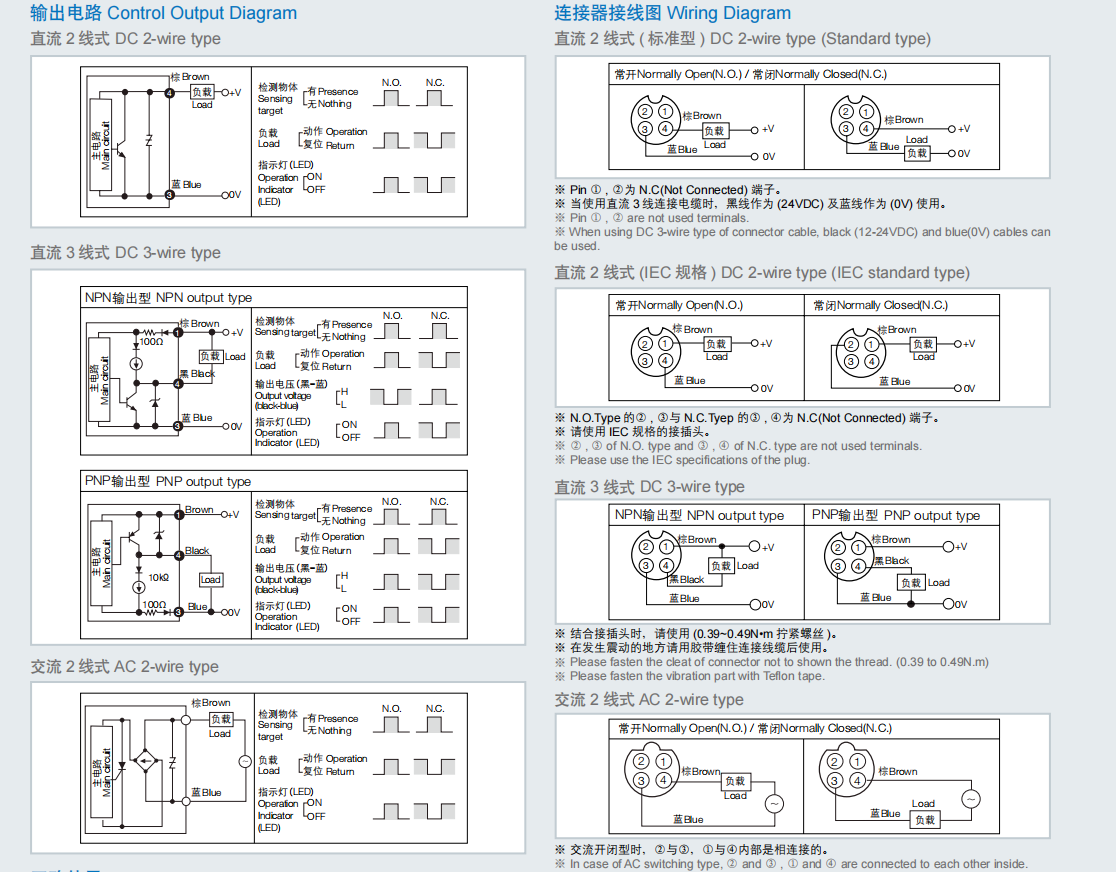

  • Control Output Diagram

Inside surge protection, reverse polarity protection

Long use-life cycle and high reliability, easy install,

enconomic price

Red LED status indication, easy to confifirm work situation

Protection structure IP67(IEC standard)

Replaceable for limit switches

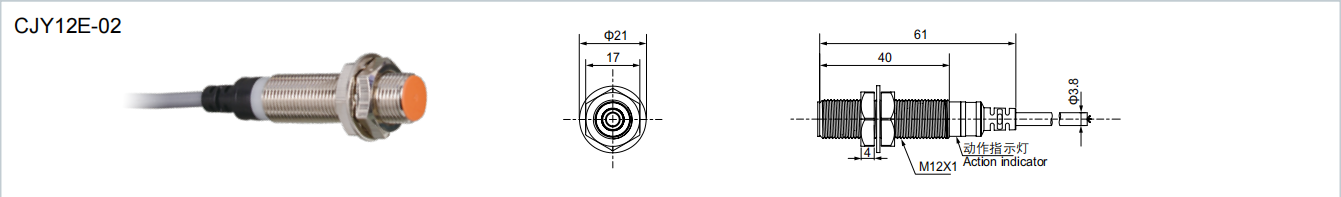

Appearance and Dimension

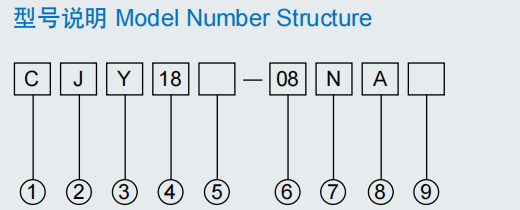

Model Number Structure

Item

Code

Description

1 Company code

C

Company code

2 Product name

J

Inductive proximity sensor

3 Shape of shell

Y

Cylinder-shaped

4 Dimension code

18

18=M18

5 Product type

Without

Without =  High-end type( Light green head)

E

E =Standard type(Orange head)

6 Detection distance

08

08=8mm



7 Output mode

K

AC 2wires

L

DC 2wires

P

PNP 3wires

N

NPN 3wires


8 Output state

A

NO

B

NC

C

NO+NC


9 Connection

Without

Without: Lead wire

T

Plug-in

R

Wiring leads Plug-in

Proper Usage

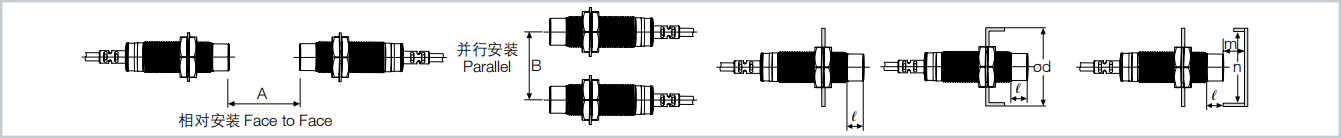

Mutual-interference

When several proximity sensors are mounted close to one another a malfunction of the sensor may be caused due to mutual interference.

Therefore, be sure to provide a minimum distanc between the two sensors as below chart indicates.

Inflfluence by surrounding metals

When sensors are mounted on metallic panel, you must prevent the sensors from being affected by any metallic object except target.

Therefore, be sure to provide a minimum distance as below chart indicates.


Model

Item

CJY12-02T

CJY12-04T

CJY18-05T

CJY18-08T

CJY30-10T

CJY30-15T

CJY12E-02T

CJY12E-04T

CJY18E-05T

CJY18E-08T

CJY30E-10T

CJY30E-15T

A

12

24

30

48

60

90

B

24

36

36

54

60

90

e

0

11

0

14

0

15

φd

12

36

18

54

30

90

m

6

12

15

24

30

45

n

18

36

27

54

45

90

DC 3-wire type




Model


High-end type

CJY12-02NAT CJY12-02NBT CJY12-02NCT CJY12-02PAT CJY12-02PBT CJY12-02PCT

CJY12-04NAT CJY12-04NBT CJY12-04NCT CJY12-04PAT CJY12-04PBT CJY12-04PCT

CJY18-05NAT CJY18-05NBT CJY18-05NCT CJY18-05PAT CJY18-05PBT CJY18-05PCT

CJY18-08NAT CJY18-08NBT CJY18-08NCT CJY18-08PAT CJY18-08PBT CJY18-08PCT

CJY30-10NAT CJY30-10NBT CJY30-10NCT CJY30-10PAT CJY30-10PBT CJY30-10PCT

CJY30-15NAT CJY30-15NBT CJY30-15NCT CJY30-15PAT CJY30-15PBT CJY30-15PCT


Standard type

CJY12E-02NAT CJY12E-02NBT CJY12E-02NCT CJY12E-02PAT CJY12E-02PBT CJY12E-02PCT

CJY12E-04NAT CJY12E-04NBT CJY12E-04NCT CJY12E-04PAT CJY12E-04PBT CJY12E-04PCT

CJY18E-05NAT CJY18E-05NBT CJY18E-05NCT CJY18E-05PAT CJY18E-05PBT CJY18E-05PCT

CJY18E-08NAT CJY18E-08NBT CJY18E-08NCT CJY18E-08PAT CJY18E-08PBT CJY18E-08PCT

CJY30E-10NAT CJY30E-10NBT CJY30E-10NCT CJY30E-10PAT CJY30E-10PBT CJY30E-10PCT

CJY30E-15NAT CJY30E-15NBT CJY30E-15NCT CJY30E-15PAT CJY30E-15PBT CJY30E-15PCT

Sensing distance

2mm

4mm

5mm

8mm

10mm

15mm

Hysteresis

Max. 10% of sensing distance

Standard sensing target

12×12×1mm
(Iron)

18×18×1mm
( Iron)

25×25×1mm
(Iron)

30×30×1mm
(Iron)

45×45×1mm
( Iron)

Setting distance

0~1.4mm

0~2.8mm

0~3.5mm

0~5.6mm

0~7mm

0~10.5mm

Power supply (Operating voltage)

12-24VDC (10-30VDC)

Leakage current

Max.10mA

Response frequency (※1)

1000Hz

500Hz

500Hz

350Hz

350Hz( 高端 )

200Hz

400Hz( 标准 )

Residual voltage

1.0V 以下 Max. 1.0V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-25~+70℃ ( No icing)

Storage temperature

-30~+80℃ (No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit

Material

Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT

Protection

IP65

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

DC 3-wire type


Model


High-end type

CJY04-01NA CJY04-01NB CJY04-01PA CJY04-01PB

CJY05-01NA CJY05-01NB CJY05-01PA CJY05-01PB

CJY06-01NA CJY06-01NB CJY06-01PA CJY06-01PB

CJY6.5-1.5NA CJY6.5-1.5NB CJY6.5-1.5PA CJY6.5-1.5PB

Standard type


/


/


/


/

Sensing distance

1mm

1mm

1mm

1.5mm

Hysteresis

Max. 10% of sensing distance

Standard sensing target

6×6×1mm
( Iron)

7×7×1mm
( Iron)

8×8×1mm
( Iron)

8×8×1.5mm
( Iron)

Setting distance

0~0.8mm

0~0.8mm

0~1.0mm

0~6.5mm

Power supply (Operating voltage)


12-24VDC (10-30VDC)

Leakage current

Max.10mA

Response frequency (※1)

1500Hz

1500Hz

1000Hz

1000Hz

Residual voltage (※2)

Max. 1.0V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration


1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-25~+70℃ ( No icing)

Storage temperature

-30~+80℃ ( No icing)

Ambient humidity

35~95%RH (No condensation)

Protection circuit

Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit

Material

Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface:
PBT,Standard cable(Grey): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)


Cable

φ2.8, 3P, 2m

AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25

Protection

IP67

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

DC 2-wire type


Model

High-end type

CJY12-02LAT CJY12-02LBT

CJY12-04LAT CJY12-04LBT

CJY18-05LAT CJY18-05LBT

CJY18-08LAT CJY18-08LBT

CJY30-10LAT CJY30-10LBT

CJY30-15LAT CJY30-15LBT

Standard type

CJY12E-02LAT

CJY12E-04LAT

CJY18E-05LAT

CJY18E-08LAT

CJY30E-10LAT

CJY30E -15LAT

Sensing distance

2mm

4mm

5mm

8mm

10mm

15mm

Hysteresis

Max. 10% of sensing distance

Standard sensing target

12×12×1mm
( Iron)

18×18×1mm
(Iron)

25×25×1mm
( Iron)

30×30×1mm
( Iron)

45×45×1mm
( Iron)

Setting distance

0~1.4mm

0~2.8mm

0~3.5mm

0~5.6mm

0~7mm

0~10.5mm

Power supply
(Operating voltage)

12-24VDC (10-30VDC)

Leakage current

Max.0.6mA

Response frequency (※1)

1000Hz

500Hz

500Hz

350Hz

350Hz

200Hz

Residual voltage

Max. 3.5V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-25~+70℃ (  No icing)

Storage temperature

-30~+80℃ ( No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit

Material

Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT

Protection

IP65

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

AC 2-wire type


Model

High-end type

/

CJY12-04KAT

CJY12-04KBT

CJY18-05KAT

CJY18-05KBT

CJY18-08KAT

CJY18-08KBT

CJY30-10KAT

CJY30-10KBT

CJY30-15KAT

CJY30-15KBT

Standard type

CJY12E-02KAT

CJY12E-02KBT

CJY12E-04KAT CJY12E-04KBT

CJY18E-05KAT CJY18E-05KBT

CJY18E-08KAT CJY18E-08KBT

CJY30E-10KAT CJY30E-10KBT

CJY30E-15KAT CJY30E-15KBT

Sensing distance

2mm

4mm

5mm

8mm

10mm

15mm

Hysteresis

Max. 10% of sensing distance

Standard sensing target

12×12×1mm
( Iron)

18×18×1mm
( Iron)

25×25×1mm
( Iron)

30×30×1mm
( Iron)

45×45×1mm
( Iron)

Setting distance

0~1.4mm

0~2.8mm

0~3.5mm

0~5.6mm


0~7mm


0~10.5mm

Power supply (Operating voltage)

90-250VAC

Leakage current

Max.10mA

Response frequency (※1)

20Hz

Residual voltage

Max. 10V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-25~+70℃ (No icing)

Storage temperature

-30~+80℃ ( No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection current

Material

Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT

Protection

IP65

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
