CMV16031C
CNTD Electric Technology Co., Ltd. is one of the toppest CMV16031C in China.During these years of exporting , CNTD Electric Technology Co., Ltd. now has rich experience in the worldwide markets
  • Appearance and Dimension
  • Specifications

Ratings

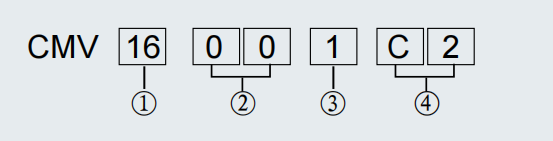

Model Number Structure

Item

Code

Description

①Rated Current

10

10A



0

Button type



1

Long handle type

②Head and driving rod

2
3
4



Short shank type
Long pulley type
Short pulley type



5

Longer handle type



6

Crank type

③Terminal specifications

C D

#250 terminal
#187 terminal

Item Type

CMV 10 type

Operation speed

0.05mm~1m/s( Button type)

Operating frequency

Electrical:20 operations/min

Insulation resistance

100mΩ above(at 500VDC)

Contact resistance

15mΩmax. (initial value)



Withstand voltage

Non-continuous  terminals

1000VAC, 50/60 Hz for 1 minute

current-carrying and non-current-carrying metal parts, Between terminal and earthing



1500VAC, 50/60 Hz for 1 minute

Vibration

Misoperation

10 to 55Hz,1.5mm pairs swing



Shock

Durable

Maximum 1000 m/S2 (100G)

Misoperation

Maximum 200 m/S2 (100G)

Life

Electrical

More than 300000 times

Temperature

Using:-20~+70℃(With no icing)

Humidity

(+5~+35℃ )Below 85% RH

Operating Characteristics

Models

CMV100D

CMV101D

CMV102D

CMV103D

CMV104D

CMV105D

CMV106D

OF (Max.)

2.4N

1.23N

2.4N

1.23N

2.7N

0.69N

1.2N

RF (Min.)

0.49N

0.14N

0.49N

0.14N

0.49N

0.06N

0.14N

PT (Max.)

1.2mm

4.0mm

1.6mm

4.0mm

1.5mm

9.0mm

4.0mm

OT (Min.)

1.0mm

1.6mm

0.8mm

1.6mm

0.8mm

2.0mm

1.5mm

MD (Max.)

0.4mm

1.5mm

0.6mm

1.5mm

0.6mm

2.8mm

1.5mm

OP(mm.)

14.7±0.4mm

15.2±1.2mm

15.2±0.5mm

20.7±1.2mm

20.7±0.6mm

15.2±3mm

18.7±1.2mm
