LA36-

0

■

□

-▲

-o

△

Serial number

Contact type

Operation type

Select switch position

Function

Color

Lamp voltage

01： 1NC
10: 1NO
02: 2NC
20: 2NO
11:1NO1NC
22: 11+11
03: 02+01
30: 20+10
04: 02+02
40: 20+20
12: 11+01 21: 11+10
13: 11+02
31: 11+20
NO/NC contact combinations based on needs.

PN:Setf-reset flat button
PNZS: Self-locking flat button
PND: Illuminated sdf-rest flat button
PNDZS: Illuminated self-locking flat button
GN: Self-reset high button
GNZS: Self-locking high button
GND: Illuminated self-reset high button
GNDZS: Illuminated self-locking high button M40/60:

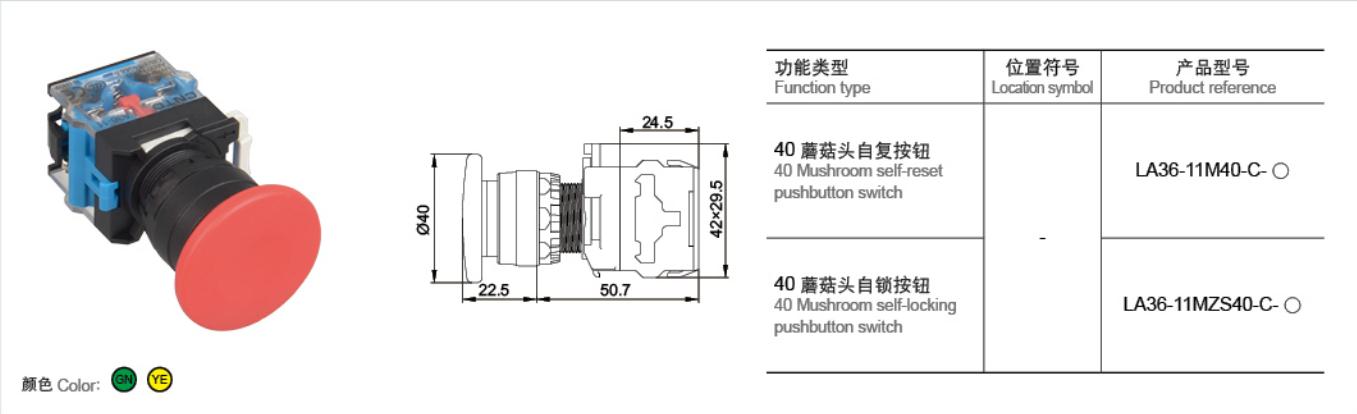

M40/60: Mushroom self-reset button
MZS40/60: Mushroom setf-locking button
MD40/60: Illuminated mushroom self-reset button
MDZS40/60: Illuminated mushroom self-locking button
X:Knob
XC: Long knob
XD: Illuminated knob

21: lw>position holding type
22: lw>position setf-res^ type
31: Three-position holding type 32: Three-position left-holding and right-self-reset type
33: Three-position sdf-reset type

C: Plastic head
T: Transparent head
FH1:" 1 "custom code
FH2:M O" custom code
FH3:"-" custom code
FH4: " = " custom code
FH5: "START" custom code
FH6: "STOP" custom code
IP65: Custom IP65 button
K: Anti-interference illuminated button

@
For the optional colors of some types.please refer to product selection (illuminated product without black)

AC/DC 6V
AC/DC 12V
AC/DC 24V
AC/DC 36V
AC/DC 48V
AC/DC 110V
AC/DC 220V
AC/DC 380V
AC 110V
AC 220V
AC 380V
