LA38M-10M40-Q-O
CNTD Electric Technology Co., Ltd. is one of the toppest LA38M-10M40-Q-O in China.During these years of exporting , CNTD Electric Technology Co., Ltd. now has rich experience in the worldwide markets
  • Features
  • Specifications

■This series of products, the button head and the middle seat are connected by multi-point clamping, in-line fixed installation, impact resistance, drop resistance, vibration resistance, suitable for use in various harsh environments.

■It is composed of button head, middle seat and contact seat. It adopts advanced selflocking connection without fasteners, which is safe and reliable. It is efficient and quick to disassemble and assemble. It can be directly installed on the middle 22mm installation panel without adding any accessories. The installation wrench is more sturdy and reliable.

■High-quality engineering flame-retardant materials are used, with good insulation performance and reliable contact

■Products comply with IEC60947-5-1, GB/T14048.5 and other standards.

■The contact element is a flat-pressed slow-action structure; it can meet the requirements of a variety of specific control circuits.

■Mounting Aperture: 022mm

■Function: self-reset button, self-locking button, illuminated button, knob, key button, emergency stop button, mushroom head button, stainless steel button, double-position button, etc.

■Switch contact combination: 01/10/02/20/11

Protection class: IP40

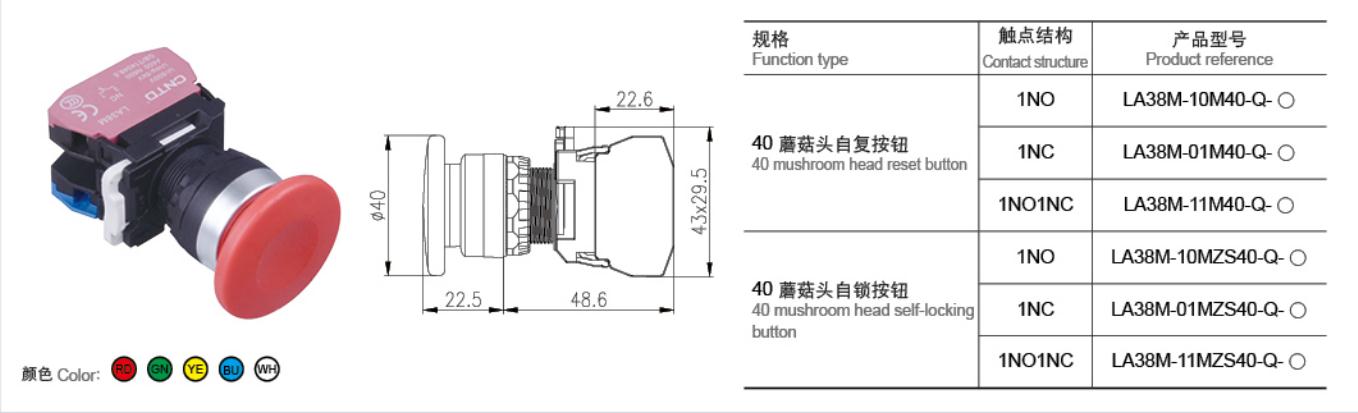

Appearance and Dimension

Switch Ratings

Ui Rated insulation voltage Ui

600V

Ith Rated thermal current Ith

10A

Ue Rated operational voltage Ue

24V

48V

110V

220V

380V

le Rated operational current le

AC50/60Hz

Resistive load

10A

-

10A

6A

-

Inductive load

10A

-

6A

3A

2A

DC

Resistive load

8A

4A

2.2A

1.1A

-

Inductive load

4A

2A

1.2A

0.6A

-

Contact material

Silver alloy

Minimum applicable load: 3VAC.DC 5mA(Reference value)

(The applicable range depends on the use environment and load type)

Ambient temperature

-25c ~+75c (With no icing)

Humidity

45~85%RH

Contact resistance

<50mQ

Insulation resistance

21 OOM Q

Power frequency withstand voltage

1890WXC/50Hz/60s

Vibration resistance

Amplitude: about 1.0mm/50Hz

Impact resistance

> 10g

Degree of protection

LA38M: IP40, LA36M: IP65

Electrical life

MO万次

Wiring capacity

Maximum: 2 x 1.5mm2 or 1 « 2.5mm2, Minimun: 2 x 0.75mm2, Maximum insert: 6.3 x 0.8mm

LED Specifications

LED type

Bidirectional LED

Rated voltage

AC/DC 6V

AC/DC 12V

AC/DC 24V

AC/DC 36V

AC/DC 48V

AC/DC 110V

AC/DC 220V

AC/DC 380V


Emitting color

• RD O(3N Oye ObU Owh

Life

>40000h

Schematic diagram of lamp holder circuit
