Item

Code

Description

1 Company code

C

Company code

2 Product name

G

Photoelectric sensor

3 Shape of shell

Y

Cylinder-shaped

4 Dimension code

18

18=M18

5 Product type

 Without

Without =High-end type（ Dark grey）

E

E = Standard type（ Rice white）

6 Installation form

D

Diffuse-reflective type

R

Retro-reflective type

T

Through-bethod type

7 Detection distance

2

2=2m

8 Output mode

K

AC 2wires

P

PNP 3wires

N

NPN 3wires

J

Relay

9 Output state

A

NO

B

NC

C

NO+NC

10 Connection

Without

Without: Lead wire

T

Plug-in

R

Wiring leads Plug-in

Model

High-end type

CGY12-D05NA

CGY12-D05NB

CGY12-D05PA

CGY12-D05PB

CGY12-D10NA

CGY12-D10NB

CGY12-D10PA

CGY12-D10PB

CGY18-D10NA

CGY18-D10NB

CGY18-D10NC

CGY18-D10PA

CGY18-D10PB

CGY18-D10PC

CGY18-D10KA

CGY18-D10KB

CGY18-D30NA

CGY18-D30NB

CGY18-D30NC

CGY18-D30PA

CGY18-D30PB

CGY18-D30PC

CGY18-D30KA

CGY18-D30KB

CGY30-D50NA

CGY30-D50NB

CGY30-D50NC

CGY30-D50PA

CGY30-D50PB

CGY30-D50PC

CGY30-D50KA

CGY30-D50KB

CGY30-D70NA

CGY30-D70NB

CGY30-D70NC

CGY30-D70PA

CGY30-D70PB

CGY30-D70PC

CGY30-D70KA

CGY30-D70KB

Standard type

CGY12E-D05NA

CGY12E-D05NB

CGY12E-D05PA

CGY12E-D05PB

CGY12E-D10NA

CGY12E-D10NB

CGY12E-D10PA

CGY12E-D10PB

CGY18E-D10NA

CGY18E-D10NB

CGY18E-D10NC

CGY18E-D10PA

CGY18E-D10PB

CGY18E-D10PC

CGY18E-D10KA

CGY18E-D10KB

CGY18E-D30NA

CGY18E-D30NB

CGY18E-D30NC

CGY18E-D30PA

CGY18E-D30PB

CGY18E-D30PC

CGY18E-D30KA

CGY18E-D30KB

CGY30E-D50NA

CGY30E-D50NB

CGY30E-D50NC

CGY30E-D50PA

CGY30E-D50PB

CGY30E-D50PC

CGY30E-D50KA

CGY30E-D50KB

CGY30E-D70NA

CGY30E-D70NB

CGY30E-D70NC

CGY30E-D70PA

CGY30E-D70PB

CGY30E-D70PC

CGY30E-D70KA

CGY30E-D70KB

Sensing distance

5cm

10cm
( Adjustable)

10cm

30cm
( Adjustable)

50cm

70cm
( Adjustable)

Hysteresis

3-20%

Light source

Infrared LED (880nm)

Consumption current

25mA

Power supply
(Operating voltage)

10-30VDC / 90-250VAC

Response time

< 8.2ms

Residual voltage

DC 1V Max. 1V / AC 10V Max. 10V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.)

in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ (No icing)

Storage temperature

-15~+55℃ (No icing)

Ambient humidity

35~95%RH ( No condensation)

Protection circuit

Surge protection circuit, Overcurrent protection circuit

Material

Case/Nut: ABS, Sensing surface: PMMA,

Standard cable(Gray): Polyvinyl chloride(PVC),

Oil resistant
cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ3.8, 3P, 2m

φ4.8, 2P,3P,4P 2m

(AWG22, Core diameter: 0.1mm,

Number of cores: 25,

Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Standard type

φ3.8, 3P, 1.5m

φ4.8, 2P,3P,4P 1.5m

(AWG22, Core diameter: 0.1mm,

Number of cores: 25,

Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Protection

IP65

Model

High-end type

CGY12-R1NA

CGY12-R1NB

CGY12-R1PA

CGY12-R1PB

CGY18-R2NA

CGY18-R2NB

CGY18-R2NC

CGY18-R2PA

CGY18-R2PB

CGY18-R2PC

CGY18-R2KA

CGY18-R2KB

CGY30-R4NA

CGY30-R4NB

CGY30-R4NC

CGY30-R4PA

CGY30-R4PB

CGY30-R4PC

CGY30-R4KA

CGY30-R4KB

Standard type

CGY12E-R1NA

CGY12E-R1NB

CGY12E-R1PA

CGY12E-R1PB

CGY18E-R2NA

CGY18E-R2NB

CGY18E-R2NC

CGY18E-R2PA

CGY18E-R2PB

CGY18E-R2PC

CGY18E-R2KA

CGY18E-R2KB

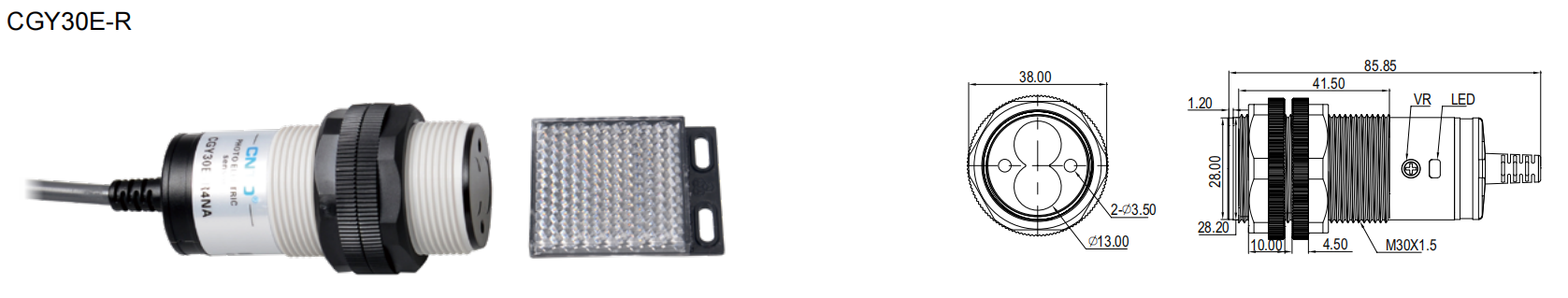

CGY30E-R4NA

CGY30E-R4NB

CGY30E-R4NC

CGY30E-R4PA

CGY30E-R4PB

CGY30E-R4PC

CGY30E-R4KA

CGY30E-R4KB

Sensing distance

1m

2m

4m

Hysteresis

3-20%

Light source

 Infrared LED (880nm)

Consumption current

25mA

Power supply
(Operating voltage)

10-30VDC / 90-250VAC

Response time

< 8.2ms

Reflector

TD02

TD08

Residual voltage

DC 1V Max. 1V / AC 10V Max. 10V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.)

in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ ( No icing)

Storage temperature

-15~+55℃ (No icing)

Ambient humidity

35~95%RH (No condensation)

Protection circuit

Surge protection circuit, Overcurrent protection circuit

Material

Case/Nut: ABS, Washer: Plastic,

Sensing surface: PMMA,

Standard cable(Gray): Polyvinyl chloride(PVC),

Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ3.8, 3P, 2m

φ4.8, 2P,3P,4P 2m

(AWG22, Core diameter: 0.1mm,

Number of cores: 25,

Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Standard type

φ3.8, 3P, 1.5m

φ4.8, 2P,3P,4P 1.5m

(AWG22, Core diameter: 0.1mm,

Number of cores: 25,

Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Protection

IP65

Model

High-end type

CGY12-T3NA

CGY12-T3NB

CGY12-T3PA

CGY12-T3PB

CGY18-T5NA

CGY18-T5NB

CGY18-T5NC

CGY18-T5PA

CGY18-T5PB

CGY18-T5PC

CGY18-T5KA

CGY18-T5KB

CGY18-T10NA

CGY18-T10NB

CGY18-T10NC

CGY18-T10PA

CGY18-T10PB

CGY18-T10PC

CGY18-T10KA

CGY18-T10KB

CGY30-T10NA

CGY30-T10NB

CGY30-T10NC

CGY30-T10PA

CGY30-T10PB

CGY30-T10PC

CGY30-T10KA

CGY30-T10KB

CGY30-T15NA

CGY30-T15NB

CGY30-T15NC

CGY30-T15PA

CGY30-T15PB

CGY30-T15PC

CGY30-T15KA

CGY30-T15KB

Standard type

CGY12E-T3NA

CGY12E-T3NB

CGY12E-T3PA

CGY12E-T3PB

CGY18E-T5NA

CGY18E-T5NB

CGY18E-T5NC

CGY18E-T5PA

CGY18E-T5PB

CGY18E-T5PC

CGY18E-T5KA

CGY18E-T5KB

CGY18E-T10NA

CGY18E-T10NB

CGY18E-T10NC

CGY18E-T10PA

CGY18E-T10PB

CGY18E-T10PC

CGY18E-T10KA

CGY18E-T10KB

CGY30E-T10NA

CGY30E-T10NB

CGY30E-T10NC

CGY30E-T10PA

CGY30E-T10PB

CGY30E-T10PC

CGY30E-T10KA

CGY30E-T10KB

CGY30E-T15NA

CGY30E-T15NB

CGY30E-T15NC

CGY30E-T15PA

CGY30E-T15PB

CGY30E-T15PC

CGY30E-T15KA

CGY30E-T15KB

Sensing distance

3m

5m

10m

10m

15m

Hysteresis

3-20%

Light source

Infrared LED (880nm)

Consumption current

40mA

Power supply (Operating voltage)

10-30VDC / 90-250VAC

Response time

< 8.2ms

Residual voltage

DC 1V 以下 Max. 1V / AC 10V 以下 Max. 10V

Affection by Temp.

Max. ±10% for sensing distance at ambient temperature 20℃

Control output

Max. 200mA

Insulation resistance

Min. 50MΩ(at 500VDC megger)

Dielectric strength

1500VAC 50/60Hz for 1minute

Vibration

1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours

Shock

500m/s2(approx. 50G) X, Y, Z directions for 3 times

Indicator

Operation indicator(red LED)

Ambient temperature

-15~+55℃ (No icing)

Storage temperature

-15~+55℃ ( No icing)

Ambient humidity

35~95%RH (No condensation)

Protection circuit

Surge protection circuit, Overcurrent protection circuit

Material

Case/Nut: ABS, Sensing surface: PMMA,

Standard cable(Gray): Polyvinyl chloride(PVC),

Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)

Cable

High-end type

φ3.8, 3P, 2m

φ4.8, 2P,3P,4P 2m

(AWG22, Core diameter: 0.1mm,

Number of cores: 25,

Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Standard type

φ3.8, 3P, 1.5m

φ4.8, 2P,3P,4P 1.5m

(AWG22, Core diameter: 0.1mm,

Number of cores:

25,Insulator diameter: φ1.25

(AWG22, Core diameter: 0.1mm,

Number of cores: 30,

Insulator diameter: φ1.25

Protection

IP65
