CH6M
◼One-shot output time, in units of 10ms, can be set from 0.01
seconds to 99.99 seconds；
◼Counter mode
Display range 0.00001~99999.9；
9 input modes and 11 output modes to choose from；
BATCH counting, counting initial value setting function；
Optional up to 10kCPS input speed；
◼Timer mode
12 time range formats are available；
13 output modes are available；
Wide time setting range (0.001 seconds~99999.9 hours)
Support forward timing and countdown；
◼Power-off memory function；
|
Item |
Code |
Description |
|
① Company name |
C |
CNTD |
|
② Series |
H |
Counter/timer |
|
③ Installation dimension |
6 |
999999 |
|
④ Dimensions |
S |
DIN W48×H48mm |
|
M |
DIN W72×H72mm |
|
|
⑤ Output |
1P |
1 stage setting type |
|
2P |
2-stage setting type |
|
|
⑥ Supply voltage |
2 |
24VAC 50/60Hz 24-48VDC |
|
4 |
100-240VAC 50/60Hz |
Electrical Specification
|
Voltage |
AC power supply type |
100-240VAC 50/60Hz |
|
DC power supply type |
24VDC |
|
|
Power consumption |
|
≤ 12VA |
|
INA/INB maximum counting speed |
1cps/30cps/1Kcps/5Kcps/10Kcps can be selected |
|
|

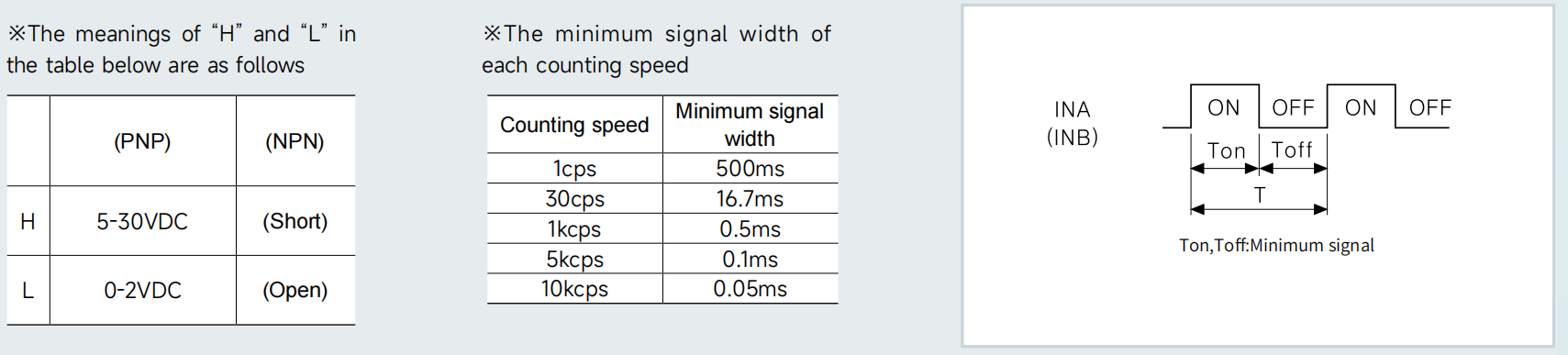

Minimum signal width |
Counter |
Reset input: 1ms, 20ms optional |
|
Timer |
NA, RESET, INHIBIT, BATCH RESET reset signal: 2ms, 20ms optional |
|
|
Input method |
No voltage input |
|
|
One-shot output time |
Counter, timer, 0.01seconds~99.99 seconds |
|
|
Memory storage |
10 years (non-volatile semiconductor memory) |
|
|
Wiring method |
Terminal block |
|
|
Use the surrounding humidity |
-25~+70℃ (not frozen state) |
|
|
Storage temperature |
-30~+80℃ (not frozen state) |
|
|
Humidity |
35%~95%RH(Non-condensing state) |
|

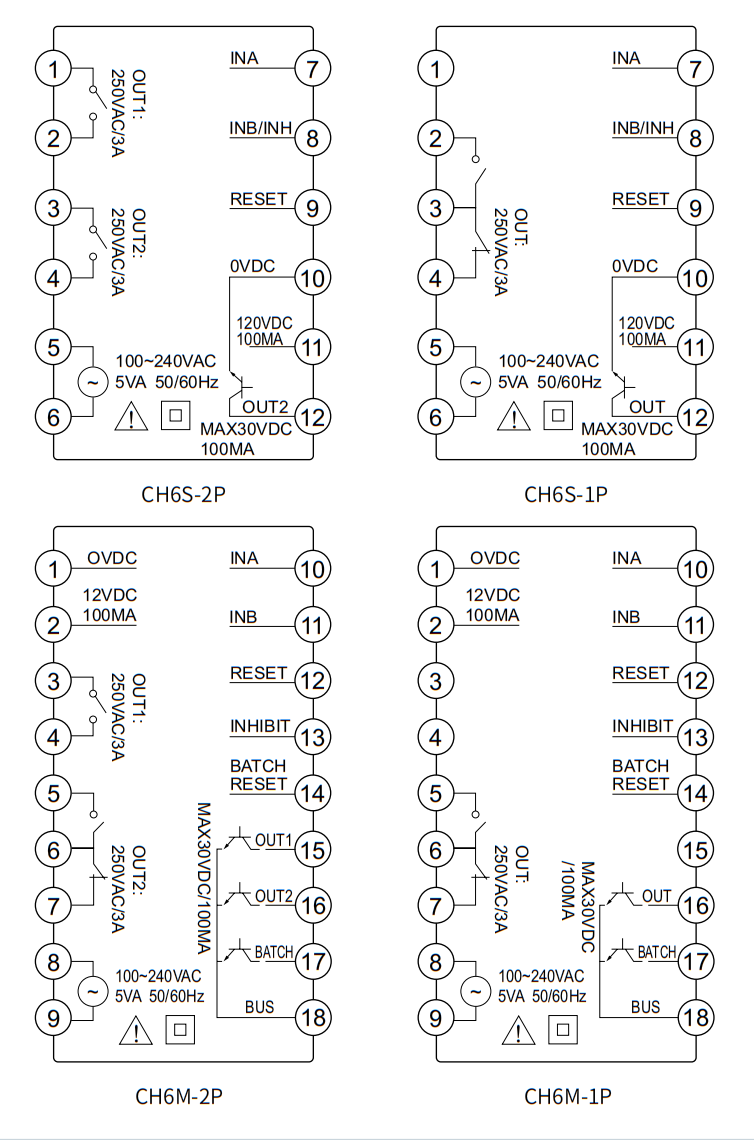

Wiring diagram
|
Model number |
Panel size |
Shell size (length×width ×height) |
Opening size |
|
CH6S |
48×48 |
44.3×44.3×81 |
45×45 |
|
CH6M |
72×72 |
67×67×81 |
68×68 |

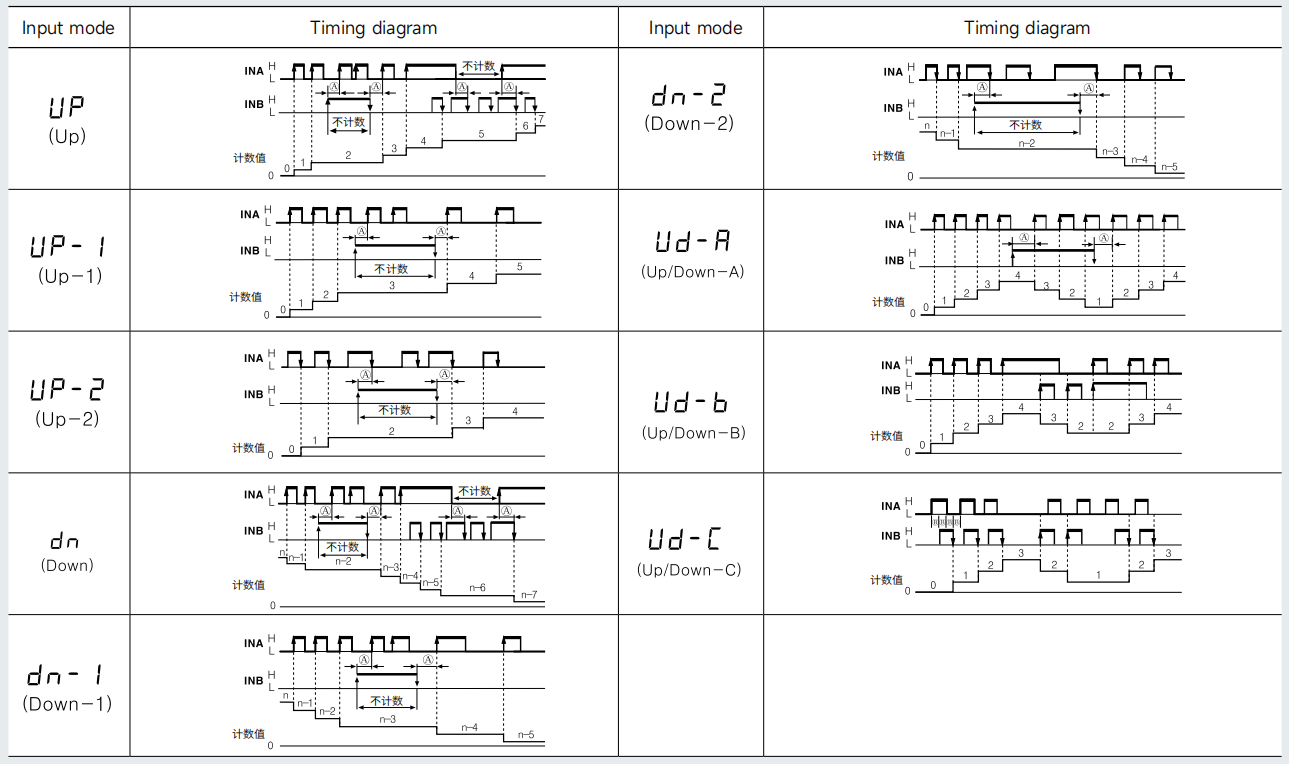

Input mode (counter)
Output mode (counter)

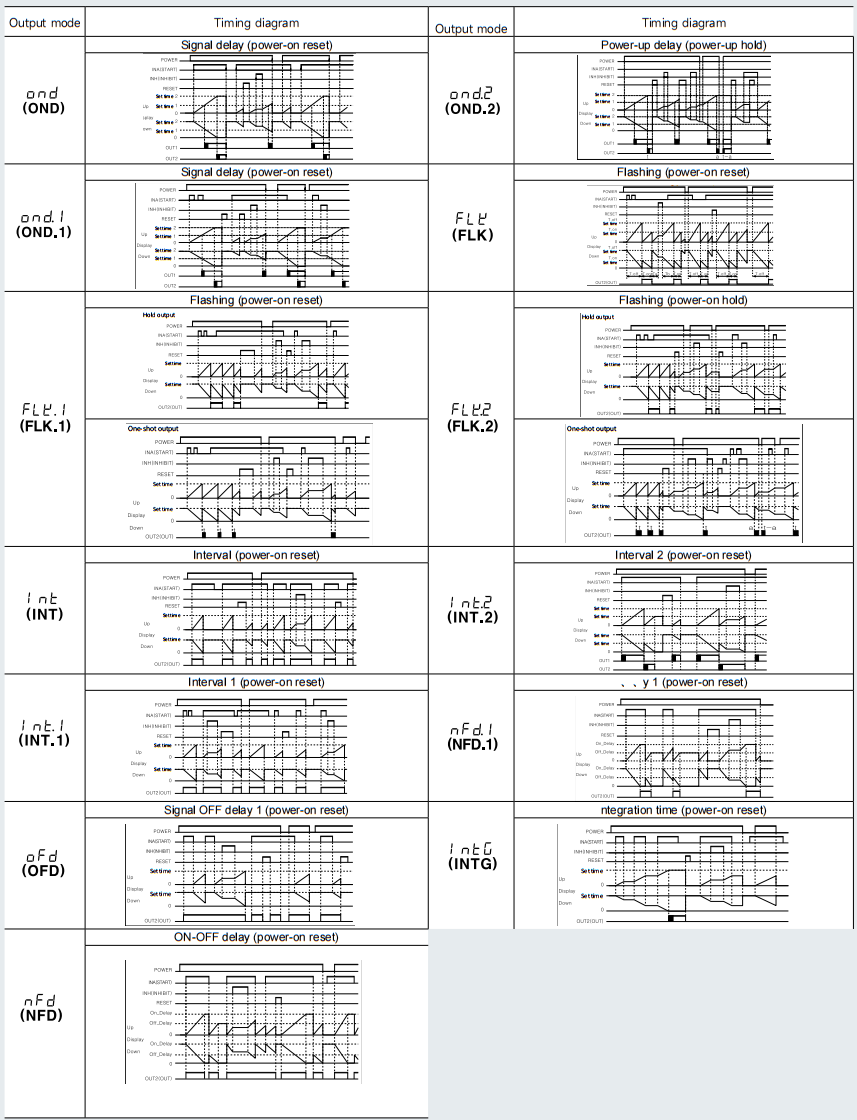

Output mode (timer)
