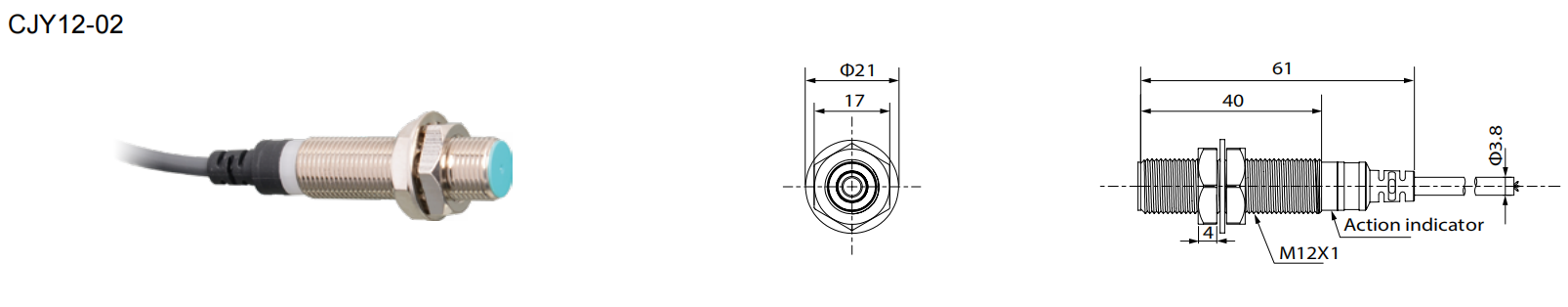

CJY12-02
◼Orange mark for standard type
◼Light green mark for high-end type
◼◼Inside surge protection, reverse polarity protection
◼◼Long use-life cycle and high reliability, easy install, enconomic price
◼◼Red LED status indication, easy to confirm work situation
◼◼Protection structure IP67(IEC standard)
◼◼Replaceable for limit switches
◼Exclusively designed IC for improving anti-jamming capability
|
Item |
Code |
Description |
|
1 Company code |
C |
Company code |
|
2 Product name |
J |
Inductive proximity sensor |
|
3 Shape of shell |
Y |
Cylinder-shaped |
|
4 Dimension code |
18 |
18=M18 |
|
5 Product type |
Without |
Without = High-end type（ Light green head） |
|
E |
E =Standard type（Orange head） |
|
|
6 Detection distance |
08 |
08=8mm |
|
7 Output mode |
K |
AC 2wires |
|
L |
DC 2wires |
|
|
P |
PNP 3wires |
|
|
N |
NPN 3wires |
|
|
8 Output state |
A |
NO |
|
B |
NC |
|
|
C |
NO+NC |
|
|
9 Connection |
Without |
Without: Lead wire |
|
T |
Plug-in |
|
|
R |
Wiring leads Plug-in |
Proper Usage
Mutual-interference
When several proximity sensors are mounted close to one another a malfunction of the sensor may be caused due to mutual interference.
Therefore, be sure to provide a minimum distance
between the two
sensors as below chart indicates.
Inflfluence by surrounding metals
When sensors are mounted on metallic panel, you must prevent the
sensors from being affected by any metallic object except target.
Therefore, be sure to provide a minimum distance as below chart
indicates.
|
Model Item |
CJY12-02T |
CJY12-04T |
CJY18-05T |
CJY18-08T |
CJY30-10T |
CJY30-15T |
|
CJY12E-02T |
CJY12E-04T |
CJY18E-05T |
CJY18E-08T |
CJY30E-10T |
CJY30E-15T |
|
|
A |
12 |
24 |
30 |
48 |
60 |
90 |
|
B |
24 |
36 |
36 |
54 |
60 |
90 |
|
e |
0 |
11 |
0 |
14 |
0 |
15 |
|
φd |
12 |
36 |
18 |
54 |
30 |
90 |
|
m |
6 |
12 |
15 |
24 |
30 |
45 |
|
n |
18 |
36 |
27 |
54 |
45 |
90 |
DC 3-wire type
|
Model |
High-end type |
CJY04-01NA CJY04-01NB CJY04-01PA CJY04-01PB |
CJY05-01NA CJY05-01NB CJY05-01PA CJY05-01PB |
CJY06-01NA CJY06-01NB CJY06-01PA CJY06-01PB |
CJY6.5-1.5NA CJY6.5-1.5NB CJY6.5-1.5PA CJY6.5-1.5PB |
|
Standard type |
/ |
/ |
/ |
/ |
|
|
Sensing distance |
1mm |
1mm |
1mm |
1.5mm |
|
|
Hysteresis |
Max. 10% of sensing distance |
||||
|
Standard sensing target |
6×6×1mm |
7×7×1mm |
8×8×1mm |
8×8×1.5mm |
|
|
Setting distance |
0~0.8mm |
0~0.8mm |
0~1.0mm |
0~6.5mm |
|
|
Power supply (Operating voltage) |
12-24VDC (10-30VDC) |
||||
|
Leakage current |
Max.10mA |
||||
|
Response frequency (※1) |
1500Hz |
1500Hz |
1000Hz |
1000Hz |
|
|
Residual voltage (※2) |
Max. 1.0V |
||||
|
Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃ |
||||
|
Control output |
Max. 200mA |
||||
|
Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
||||
|
Dielectric strength |
1500VAC 50/60Hz for 1minute |
||||
|
Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
||||
|
Shock |
500m/s2(approx. 50G) X, Y, Z directions for 3 times |
||||
|
Indicator |
Operation indicator(red LED) |
||||
|
Ambient temperature |
-25~+70℃ ( No icing) |
||||
|
Storage temperature |
-30~+80℃ ( No icing) |
||||
|
Ambient humidity |
35~95%RH (No condensation) |
||||
|
Protection circuit |
Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit |
||||
|
Material |
Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: |
||||
|
Cable |
φ2.8, 3P, 2m |
||||
|
AWG22, Core diameter: 0.1mm, Number of cores: 22, Insulator diameter: φ1.25 |
|||||
|
Protection |
IP67 |
||||
(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
DC 2-wire type
|
Model |
High-end type |
CJY08-011A CJY08-01LB |
CJY08-02LA CJY08-02LB |
CJY1202LA CJY12-02LB |
C.JY12-04LA CJY12-04LB |
CJY18-051A CJY18-05LB |
CY18-08LA CJY18-08LB |
CJY30-10LA CJY30-10LB |
CJY30-15LA CJY30-15LB |
|
|
Ctandard type |
CJY08E-01LA CJYO8E-01LB |
CJYO8E02LA CJY08E-02LB |
CJY12E-02LA CJY12E-O2LB |
CJY12E-04LA CJY12E-04LB |
CJY18E-05LA CJY18E-05LB |
CJY18E-08LA CJY18E-08LB |
CJY30E-10LA CJY30E-10LB |
CJY30E-15LA CJY30E-15LB |
||
|
Sensing distance |
1mm |
2mm |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
||
|
Hysteresis |
Max.10%of sensing distance |
|||||||||
|
Standard sensing target |
8×8×1mm (lron) |
12×12×1mm (Iron) |
8×18×1mm (Iron) |
25×25×1mm (lron) |
30×30×1mm (Iron) |
45×45×1mm (lron) |
||||
|
Setting distance |
0~0.8mm |
0~1.4mm |
0~1.4mm |
0~2.8mm |
0~3.5mm |
0~5.6mm |
0~7mm |
0~10.5mm |
||
|
Power supply (Operating voltage) |
12-24VDC(10-30VDC) |
|||||||||
|
Leakage curren |
Max.0.6mA |
|||||||||
|
Response frequency ( |
1000Hz |
1000Hz |
1000Hz |
S00Hz |
350Hz |
350Hz |
200Hz |
|||
|
Residual voltage |
Max.3.5V |
|||||||||
|
Affection by Temp |
Max.±10%for sensing distance at ambient temperature 20℃ |
|||||||||
|
Control output |
Max.200mA |
|||||||||
|
lnsulation resistance |
Min.50MΩ(at 500VDC megger) |
|||||||||
|
Dielectric strengtr |
1500VAC 50/60Hz for 1minute |
|||||||||
|
Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.)in each of X,Y,Z directions for 2 hours |
|||||||||
|
Shock |
500m/s²(approx.50G)X,Y,Z directions for 3 times |
|||||||||
|
ndicator |
Operation indicator(red LED) |
|||||||||
|
Ambient temperature |
-25~+70℃(No icing) |
|||||||||
|
Storage temperature |
-30~+80℃(No icing) |
|||||||||
|
Ambient humidity |
35~95%RH(No condensation) |
|||||||||
|
Protection circuit |
Surge protection circuit |
|||||||||
|
Material |
Case/Nut:Nickel plated Brass,Washer: Nickel plated Iron,Sensing surface:PBT,Standard cable(Gray):Polyvinyl chloride(PVC),Oil resistant cable(Black):Oil resistant Polyvinyl chloride(PVC) |
|||||||||
|
Cable |
High-end ype |
φ2.8,2P,2m |
φ3.8.2P.2m |
φ4.8,2P,2m |
||||||
|
(AWG22,Core diameter:0.1mm, Number of cores:22 Insulator diameter:φ1.25) |
(AWG22,Core diameter: 0.1mm,Number of cores:25Insulator diameter:φ1.25) |
(AWG22,Core diameter:0.1mm,
Number of cores:30,
Insulator diameter:φ1.25) |
||||||||
|
Standard type |
φ2.8,2P,1.5m |
φ3.8,2P,1.5m |
φ4.8,2P 1.5m |
|||||||
|
(AWG22,Core diameter: 0.1mm, Number of cores:22 Insulator diameter:φ1.25) |
(AWG22,Corediameter:0.1mm,
Number of cores:25
Insulator diameter:φ1.25) |
(AWG22,Core diameter:0.1mm,
Number of cores:30, Insulator diameter:φ1.25) |
||||||||
|
Protection |
IP67 |
|||||||||
(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
AC 2-wire type
|
Model |
High-end type |
/ |
CJY12-04KA
CJY12-04KB |
CJY18-05KA
CJY18-05KB |
CJY18-08KA
CJY18-08KB |
CJY30-10KA
CJY30-10KB |
CJY30-15KA
CJY30-15KB |
|
Standard type |
CJY12E-02KA
CJY12E-02KB |
CJY12E-04KA
CJY12E-04KB |
CIY18E-05KA
CJY18E-05KB |
CJY18E-08KA
CJY18E-08KB |
CJY30E-10KA
CJY30E-10KB |
CJY30E-15KA
CJY30E-15KB |
|
|
Sensing distance |
2mm |
4mm |
5mm |
8mm |
10mm |
15mm |
|
|
Hysteresis |
Max.10%of sensing distance |
||||||
|
Standard sensing targe |
12×12×1mm (lron) |
18×18×1mm (Iron) |
25×25×1mm (Iron) |
30×30×1mm (lron) |
45×45×1mm (Iron) |
||
|
Setting distance |
0~1.4mm |
0~2.8mm |
0~3.5mm |
0~5.6mm |
0~7mm |
0~10.5mm |
|
|
Power supply (Operating voltage) |
24-250VAC() |
||||||
|
90-250VAC() |
|||||||
|
Leakage current |
Max.10mA |
||||||
|
Response frequency (※1) |
20Hz |
||||||
|
Residual voltage |
Max.10V |
||||||
|
Affection by Temp |
Max.±10%for sensing distance at ambient temperature 20℃ |
||||||
|
Control output |
Max.200mA |
||||||
|
Insulation resistance |
Min.50MΩ(at 500VDC megger) |
||||||
|
Dielectric strength |
1500VAC 50/60Hz for 1minute |
||||||
|
Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.)in each of X,Y,Z directions for 2 hours |
||||||
|
Shock |
500m/s²(approx.50G)X,Y,Z directions for 3 times |
||||||
|
Indicator |
Operation indicator(red LED) |
||||||
|
Ambient temperature |
-25~+70℃ (No icing) |
||||||
|
Storage temperature |
-30~+80℃(No icing) |
||||||
|
Ambient humidity |
35~95%RH (No condensation) |
||||||
|
Protection circuit |
Surge protection current |
||||||
|
Material |
Case/Nut:Nickel plated Brass, Washer:Nickel plated Iron, Sensing surface:PBT,Standard cable(Gray): Polyvinyl chloride(PVC),Oil resistant cable(Black): Oil resistant Polyvinyl chlonde(PVC) |
||||||
|
Cable |
High-end type |
φ3.8.2P,2m |
φ4.8,2P,2m |
||||
|
(AWG22,Core diameter:0.1mm Number of cores:25,Insulator diameter:φ1.25 |
(AWG22,Core diameter:0.1mm, Number of cores:30, Insulator diameter:φ1.25) |
||||||
|
Standard type |
φ3.8,2P,1.5m |
φ4.8,2P,1.5m |
|||||
|
(AWG22,Core diameter:0.1mm Number of cores:25,Insulator diameter:φ1.25) |
(AWG22,Core diameter:0.1mm, Number of cores:30, Insulator diameter:φ1.25) |
||||||
|
Protection |
IP67 |
||||||
(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.
|
Mutual-interference When several proximity sensors are mounted close to one another a malfunction of the sensor may be caused due to mutual interference. Therefore, be sure to provide a minimum distance between the two sensors as below chart indicates. |
Influence by surrounding metals When sensors are mounted on metallic panel, you must prevent the sensors from being affected by any metallic object except target. Therefore, be sure to provide a minimum distance as below chart indicates. |
|
Model Item |
CJY12-02T |
CJY12-04T |
CJY18-05T |
CJY18-08T |
CJY30-10T |
CJY30-15T |
|
CJY12E-02T |
CJY12E-04T |
CJY18E-05T |
CJY18E-08T |
CJY30E-10T |
CJY30E-15T |
|
|
A |
12 |
24 |
30 |
48 |
60 |
90 |
|
B |
24 |
36 |
36 |
54 |
60 |
90 |
|
e
|
0 |
11 |
0 |
14 |
0 |
15 |
|
φd |
12 |
36 |
18 |
54 |
30 |
90 |
|
m |
6 |
12 |
15 |
24 |
30 |
45 |
|
n |
18 |
36 |
27 |
54 |
45 |
90 |
