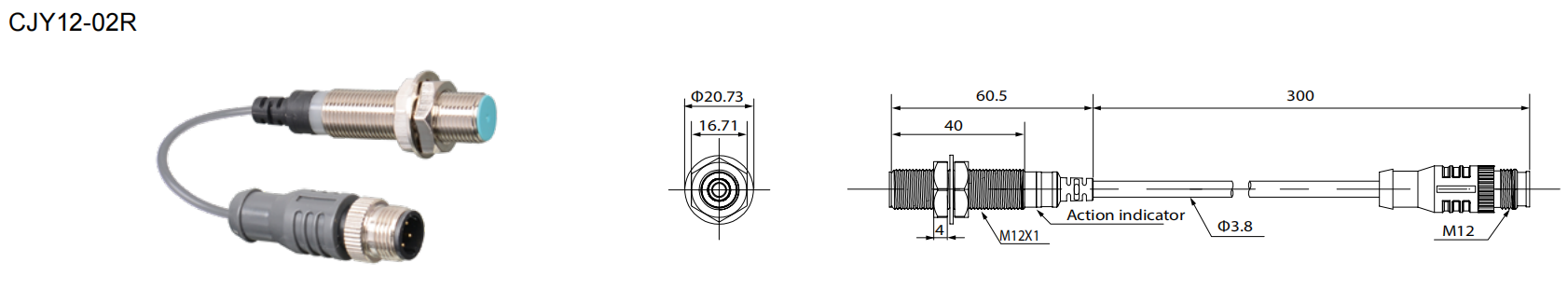

CJY12-02R

As a specialist of CJY12-02R, CNTD Electric Technology Co., Ltd. can offer you comprehensive selections of goods in this industry.

Email: market@cntd.com

Tel: 18857728107

Whatsapp: 8618857728107

CJY12-02R

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

FEATURES

◼Orange mark for standard type

◼Light green mark for high-end type

◼Exclusively designed IC for improving anti-jamming capability

◼◼Inside surge protection, reverse polarity protection

◼◼Long use-life cycle and high reliability, easy install, enconomic price

◼◼Red LED status indication, easy to confirm work situation

◼◼Protection structure IP67(IEC standard)

◼◼Replaceable for limit switches

Item	Code	Description
1 Company code	C	Company code
2 Product name	J	Inductive proximity sensor
3 Shape of shell	Y	Cylinder-shaped
4 Dimension code	18	18=M18
5 Product type	Without	Without =High-end type（ Light green head）
5 Product type	E	Standard type（Orange head）
6 Detection distance	08	08=8mm
7 Output mode	K	AC 2wires
	L	DC 2wires
	P	PNP 3wires
	N	NPN 3wires
8 Output state	A	NO
	B	NC
	C	NO+NC
9 Connection	Without	Without: Lead wire
	T	Plug-in
	R	Wiring leads Plug-in

SPECIFIFICATIONS

DC 3-wire type

odel	High-end type	CJY12-02NAR CJY12-02NBR CJY12-02NCR CJY12-02PAR CJY12-02PBR CJY12-02PCR	CJY12-04NAR CJY12-04NBR CJY12-04NCR CJY12-04PAR CJY12-04PBR CJY12-04PCR	CJY18-05NAR CJY18-05NBR CJY18-05NCR CJY18-05PAR CJY18-05PBR CJY18-05PCR	CJY18-08NAR CJY18-08NBR CJY18-08NCR CJY18-08PAR CJY18-08PBR CJY18-08PCR	CJY30-10NAR CJY30-10NBR CJY30-10NCR CJY30-10PAR CJY30-10PBR CJY30-10PCR	CJY30-15NAR CJY30-15NBR CJY30-15NCR CJY30-15PAR CJY30-15PBR CJY30-15PCR
	Standard type	CJY12E-02NAR CJY12E-02NBR CJY12E-02NCR CJY12E-02PAR CJY12E-02PBR CJY12E-02PCR	CJY12E-04NAR CJY12E-04NBR CJY12E-04NCR CJY12E-04PAR CJY12E-04PBR CJY12E-04PCR	CJY18E-05NAR CJY18E-05NBR CJY18E-05NCR CJY18E-05PAR CJY18E-05PBR CJY18E-05PCR	CJY18E-08NAR CJY18E-08NBR CJY18E-08NCR CJY18E-08PAR CJY18E-08PBR CJY18E-08PCR	CJY30E-10NAR CJY30E-10NBR CJY30E-10NCR CJY30E-10PAR CJY30E-10PBR CJY30E-10PCR	CJY30E-15NAR CJY30E-15NBR CJY30E-15NCR CJY30E-15PAR CJY30E-15PBR CJY30E-15PCR
Sensing distance		2mm	4mm	5mm	8mm	10mm	15mm
Hysteresis		Max. 10% of sensing distance
Standard sensing target		12×12×1mm ( Iron)		18×18×1mm ( Iron)	25×25×1mm ( Iron)	30×30×1mm ( Iron)	45×45×1mm ( Iron)
Setting distance		0~1.4mm	0~2.8mm	0~3.5mm	0~5.6mm	0~7mm	0~10.5mm
Power supply (Operating voltage)		12-24VDC (10-30VDC)
Leakage current		Max.10mA
Response frequency (※1)		1000Hz	500Hz	500Hz	350Hz	350Hz	200Hz
Residual voltage		Max. 1.0V
Affection by Temp.		Max. ±10% for sensing distance at ambient temperature 20℃
Control output		Max. 200mA
Insulation resistance		Min. 50MΩ(at 500VDC megger)
Dielectric strength		1500VAC 50/60Hz for 1minute
Vibration		1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock		500m/s2(approx. 50G) X, Y, Z directions for 3 times
Indicator		Operation indicator(red LED)
Ambient temperature		-25~+70℃ ( No icing)
Storage temperature		-30~+80℃ ( No icing)
Ambient humidity		35~95%RH ( No condensation)
Protection circuit		Surge protection circuit, Reverse polarity protection circuit, Overcurrent protection circuit
Material		Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)
Cable		φ3.8, 3P,4P 300mm， M12 connector		φ4.8, 3P,4P 300mm， M12 connector
Protection		IP67

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

DC 2-wire type

Model	CJY12-02LAR CJY12-02LBR	CJY12-04LAR CJY12-04LBR	CJY18-05LAR CJY18-05LBR	CJY18-08LAR CJY18-08LBR	CJY30-10LAR CJY30-10LBR	CJY30-15LAR CJY30-15LBR
Sensing distance	2mm	4mm	5mm	8mm	10mm	15mm
Hysteresis	Max. 10% of sensing distance
Standard sensing target	12×12×1mm ( Iron)		18×18×1mm ( Iron)	25×25×1mm ( Iron)	30×30×1mm ( Iron)	45×45×1mm ( Iron)
Setting distance	0~1.4mm	0~2.8mm	0~3.5mm	0~5.6mm	0~7mm	0~10.5mm
Power supply (Operating voltage)	12-24VDC (10-30VDC)
Leakage current	Max.0.6mA
Response frequency (※1)	1000Hz	500Hz	500Hz	350Hz	350Hz	200Hz
Residual voltage	Max. 3.5V
Affection by Temp.	Max. ±10% for sensing distance at ambient temperature 20℃
Control output	Max. 200mA
Insulation resistance	Min. 50MΩ(at 500VDC megger)
Dielectric strength	1500VAC 50/60Hz for 1minute
Vibration	1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock	500m/s2(approx. 50G) X, Y, Z directions for 3 times
Indicator	Operation indicator(red LED)
Ambient temperature	-25~+70℃ ( No icing)
Storage temperature	-30~+80℃ ( No icing)
Ambient humidity	35~95%RH ( No condensation)
Protection circuit	Surge protection circuit, Overcurrent protection circuit
Material	Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC))
Cable	φ3.8, 2P, 300mm， M12 connector		φ4.8, 2P, 300mm， M12 connector
Protection	IP67

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

AC 2-wire type

Model	CJY12-02KAR CJY12-02KBR	CJY12-04KAR CJY12-04KBR	CJY18-05KAR CJY18-05KBR	CJY18-08KAR CJY18-08KBR	CJY30-10KAR CJY30-10KBR	CJY30-15KAR CJY30-15KBR
Sensing distance	2mm	4mm	5mm	8mm	10mm	15mm
Hysteresis	Max. 10% of sensing distance
Standard sensing target	12×12×1mm ( Iron)		18×18×1mm ( Iron)	25×25×1mm (Iron)	30×30×1mm (Iron)	45×45×1mm ( Iron)
Setting distance	0~1.4mm	0~2.8mm	0~3.5mm	0~5.6mm	0~7mm	0~10.5mm
Power supply (Operating voltage)	24-250VAC
Leakage current	Max.10mA
Response frequency (※1)	20Hz
Residual voltage	Max. 10V
Affection by Temp.	Max. ±10% for sensing distance at ambient temperature 20℃
Control output	Max. 200mA
Insulation resistance	Min. 50MΩ(at 500VDC megger)
Dielectric strength	1500VAC 50/60Hz for 1minute
Vibration	1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours
Shock	500m/s2(approx. 50G) X, Y, Z directions for 3 times
Indicator	Operation indicator(red LED)
Ambient temperature	-25~+70℃ (No icing)
Storage temperature	-30~+80℃ ( No icing)
Ambient humidity	35~95%RH ( No condensation)
Protection circuit	Surge protection current
Material	Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: PBT, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC)
Cable	φ3.8, 2P, 300mm， M12 connector		φ4.8, 2P, 300mm， M12 connector
Protection	IP67

(※1): The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.

CONTROL OUTPUT DIAGRAM

Mutual-interference

When several proximity sensors are mounted close to one another a

malfunction of the sensor may be caused due to mutual interference.

Therefore, be sure to provide a minimum distance between the two

sensors as below chart indicates.

Influence by surrounding metals

When sensors are mounted on metallic panel, you must prevent the

sensors from being affected by any metallic object except target.

Therefore, be sure to provide a minimum distance as below chart

indicates.

Model Item	CJY12-02R	CJY12-04R	CJY18-05R	CJY18-08R	CJY30-10R	CJY30-15R
Model Item	CJY12E-02R	CJY12E-04R	CJY18E-05R	CJY18E-08R	CJY30E-10R	CJY30E-15R
A	12	24	30	48	60	90
B	24	36	36	54	60	90
e	0	11	0	14	0	15
φd	12	36	18	54	30	90
m	6	12	15	24	30	45
n	18	36	27	54	45	90
