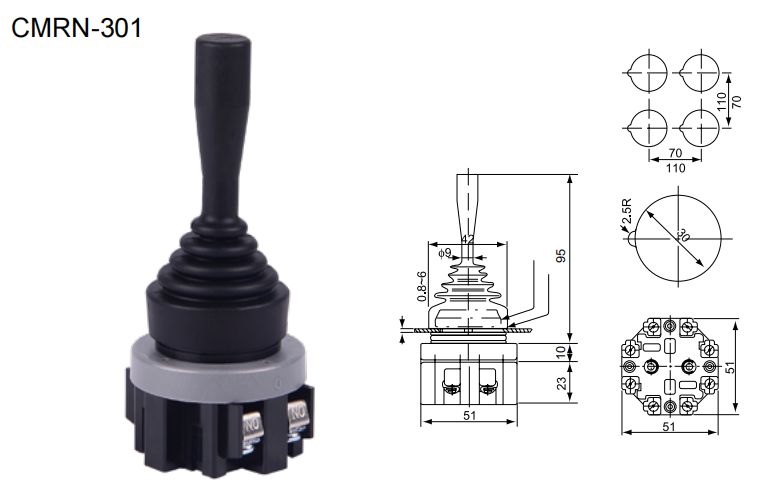

CMRN-301
◼Smoothly and swiftly handle the lever in four directions
upward, rightward, downward, and leftward
◼Three alternatives of movement are attainable in each
direction: Go-on, auto-return, and blockade-enforcing
◼Operate in four, three, or two directions with the switch
◼Rubber bushing is water-proof, oil-resistant, and
dustpreventive
Ratings
|
AC |
Rated voltage |
110V |
220V |
440V |
|
|
Rated current |
10A |
6A |
3A |
||
|
Breaking current capacity |
50A |
30A |
10A |
||
|
DC |
Resistance Load |
Rated voltage |
110V |
220V |
600V |
|
Rated Current |
2.2A |
1.1A |
0.4A |
||
|
Breaking Current |
2.42A |
1.21A |
0.44A |
||
|
Inductive Load |
Rated Current |
1.2A |
0.45A |
0.2A |
|
|
Breaking Current |
1.32A |
0.5A |
0.22A |
||
|
① Series |
CTL |
Warning Lamp Series |
|
|
② Outline dimension appearance and style |
50 |
50 Outside diameter dimension |
|
|
70 |
70 Outside diameter dimension |
||
|
702 |
70 Flat stitching |
||
|
701 |
70 Single lamp style |
||
|
801 |
80 Singlelamp style |
||
|
901 |
90 Singlelamp style |
||
|
③ Color |
R |
R: Red G: Green Y: Yellow B: Bule W: White |
|
|
④ Signal type |
M |
With buzzer |
|
|
MD |
With a separate buzzer |
||
|
M |
1 |
Continuous Ring |
|
|
2 |
Discontinuous Ring |
||
|
3 |
Discontinuous Ring, delay close |
||
|
No digital representative discontinuous Ring |
|||
|
⑤ Voltage |
AC.DC |
22 |
12V |
|
23 |
24V |
||
|
24 |
36V |
||
|
25 |
48V |
||
|
AC |
30 |
110V |
|
|
31 |
220V |
||
|
32 |
3800V |
||
|
⑥ Installation method |
P |
Vertical base |
|
|
Z |
Collapsible universal base |
||
|
C |
Side mounting base |
||
|
No letters |
No letters(pagerback base) |
||
|
⑦ Poling scale(mm) |
CTL50 |
1 |
87 |
|
2 |
142 |
||
|
3 |
242 |
||
|
CTL70/90 |
1 |
58 |
|
|
2 |
88 |
||
|
3 |
118 |
||
|
4 |
168 |
||
|
5 |
218 |
||
|
6 |
268 |
||
|
7 |
318 |
||
|
⑧ Mounting base |
|
Add the base |
|
