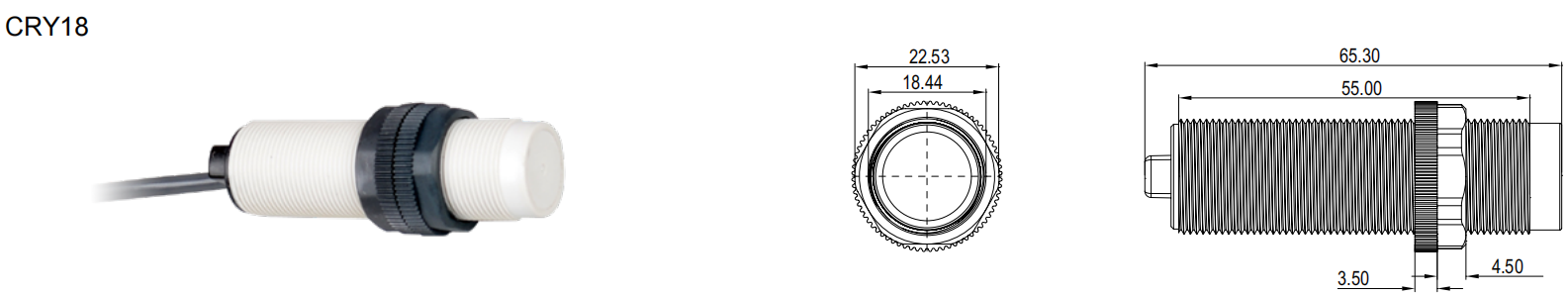

CRY18
◼Inside surge protection, reverse polarity protection
◼Long use-life cycle and high reliability, easy install, enconomic price
◼Red LED status indication, easy to confirm work situation
◼Protection structure IP65(IEC standard)
|
ltem |
Code |
Description |
|
①Company code |
C |
Company code |
|
②Product name |
R |
Capacitve proximity sensor |
|
③Shape of shell |
Y |
Cylinder-shaped |
|
④Dimension code |
18 |
18=M18 |
|
⑤Product type |
Without |
High-end type |
|
⑥Detection distance |
05 |
05=5mm |
|
⑦Output mode |
K |
AC 2wires |
|
L |
DC 2wires |
|
|
P |
PNP 3wires |
|
|
N |
NPN 3wires |
|
|
⑧Output state |
A |
NO |
|
B |
NC |
|
|
C |
NO+NC |
|
|
⑨Connection |
Without |
Without:Lead wire |
|
T |
Plug-in |
|
|
R |
Wiring leads Plug-in |
AC 2wire type
|
Model |
CRY18-05KA CRY18-05KB |
CRY18-08KA CRY18-08KB |
CRY30-10KA CRY30-10KB |
CRY30-15KA CRY30-15KB |
|
Sensing distance |
5mm |
8mm |
10mm |
15mm |
|
Hysteresis |
Max. 10% of sensing distance |
|||
|
Setting distance |
0~3.5mm |
0~5.6mm |
0~7mm |
0~10.5mm |
|
Power supply (Operating voltage) |
90-250VAC |
|||
|
Leakage current |
Max.10mA |
|||
AC 2wire type
|
Model |
CRY18-05KA CRY18-05KB |
CRY18-08KA CRY18-08KB |
CRY30-10KA CRY30-10KB |
CRY30-15KA CRY30-15KB |
|
Response frequency (※1) |
50Hz |
|||
|
Residual voltage |
Max. 10V |
|||
|
Affection by Temp. |
Max. ±10% for sensing distance at ambient temperature 20℃ |
|||
|
Control output |
Max. 200mA |
|||
|
Insulation resistance |
Min. 50MΩ(at 500VDC megger) |
|||
|
Dielectric strength |
1500VAC 50/60Hz for 1minute |
|||
|
Vibration |
1mm amplitude at frequency of 10 to 55Hz(for 1 min.) in each of X, Y, Z directions for 2 hours |
|||
|
Shock |
500m/s2(approx. 50G) X, Y, Z directions for 3 times |
|||
|
Indicator |
Operation indicator(red LED) |
|||
|
Ambient temperature |
-25~+60℃ ( No icing) |
|||
|
Storage temperature |
-30~+80℃ (No icing) |
|||
|
Ambient humidity |
35~95%RH (No condensation) |
|||
|
Protection circuit |
Surge protection circuit, |
|||
|
Material |
Case/Nut: ABS, Sensing surface: PBT, Standard cable(Gray): Polyvinyl chloride(PVC), Oil resistant cable(Black): Oil resistant Polyvinyl chloride(PVC) |
|||
|
Cable |
φ4.8, 2P, 2m |
|||
|
(AWG22, Core diameter: 0.1mm, Number of cores: 30, Insulator diameter: φ1.25 |
||||
|
Protection |
IP65 |
|||
