CDT6-ST
◼t1: The start-up delay range of 0.1s-10min can be set (knob
setting).
◼t2: The conversion time is 0.1s-1s can be set (knob setting).
◼Wi th AC220, AC380, AC/DC12V-240V ul tra-wide opera ting
voltage specifications are optional.
◼The working status of the relay is indicated by an LED indicator.
◼Ultra-small size, only 18mm width, 35mm card rail installation.
Application
◼It is specially used for motor star triangle start-up control, which
can greatly simplify the electrical circuit, facilitate wiring and
reduce costs.
|

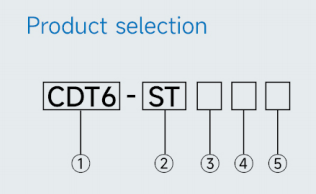

No |
ltem |
Code |
Description |
|
① |
Product name |
CDT6 |
Clamp rail type time relay |
|
② |
Function code |
ST |
Star delta start time relay (star triangle start delay) |
|
③ |
Output the number of contact groups |
2 |
Group 2 conversion |
|
④ |
Output contact |
10 |
Output contact 10A |
|
16 |
Output contact 16A |
||
|
⑤ |
Rated operating voltage |
M |
AC220V |
|
w |
AC/DC12V-240V |
||
|
H |
AC380V |
||
|
A-Z letter combination |
Custom voltage |
|
CDT6-ST |
||
|
Function |
Star Triangle start delay |
|
|
Power terminal |
A1-A2 |
|
|
Rated control power supply voltage |
W (AC/DC12V-240V) |
AC/DC 12-240V(50-60Hz) |
|
Power consumption |
AC 0.3-2VA/DC 0.1-1.2W |
|
|
Rated control power supply voltage |
M(AC220W) H (AC380V) |
AC 220V,AC 380V(50-60Hz) |
|
Power consumotior |
AC max.6VA/1.3W |
|
|
Allowable fluctuation range of power supply |
15%+10% |
|
|
Power indicator |
Green LED |
|
|
Delay range |
Start-up delay:0.1 seconds-10 minutes,conversion delay:0.1s-1s |
|
|
Setting method |
knob |
|
|
Setting accuracy |
10% |
|
|
Repeatability |
0.2% |
|
|
Temperature fluctuation error |
0.05%/℃,at=20℃(0.05%°F,at=68°F) |
|
|
Output contact parameters |
Number of contacts |
2 sets of conversion contacts |
|
10A |
2*10A 250VAC/24VDC |
|
|
16A |
2*16A 250VAC/24VDC |
|
|
Minimum switching power |
500mW |
|
|
Output relay indication |
Red LED |
|
|
Mechanical life |
1×10² |
|
|
Electrical life (resistive load) |
1×10⁵ |
|
|
Reset time |
Maximum 200ms |
|
|
Operating ambient temperature |
20℃ ~+55℃ |
|
|
Storage and transportation ambient temperature |
35℃ ~+75℃ |
|
|
nstallation method |
35mm card rail installation |
|
|
Dretection leve |
IP20 |
|
|
Installation location |
Arbitrary |
|
|
Installation altitude |
≤2000m |
|
|
Pollution level |
|
|
|
Wiring ability |
1×2.5mm²or 2×1.5mm²0.4N-m |
|
|
Dimensions |
90mm×18mm×65mn |
|
|
Weight |
80g |
|
Function diagramw
Wiring diagram
Shape and size (mm)
